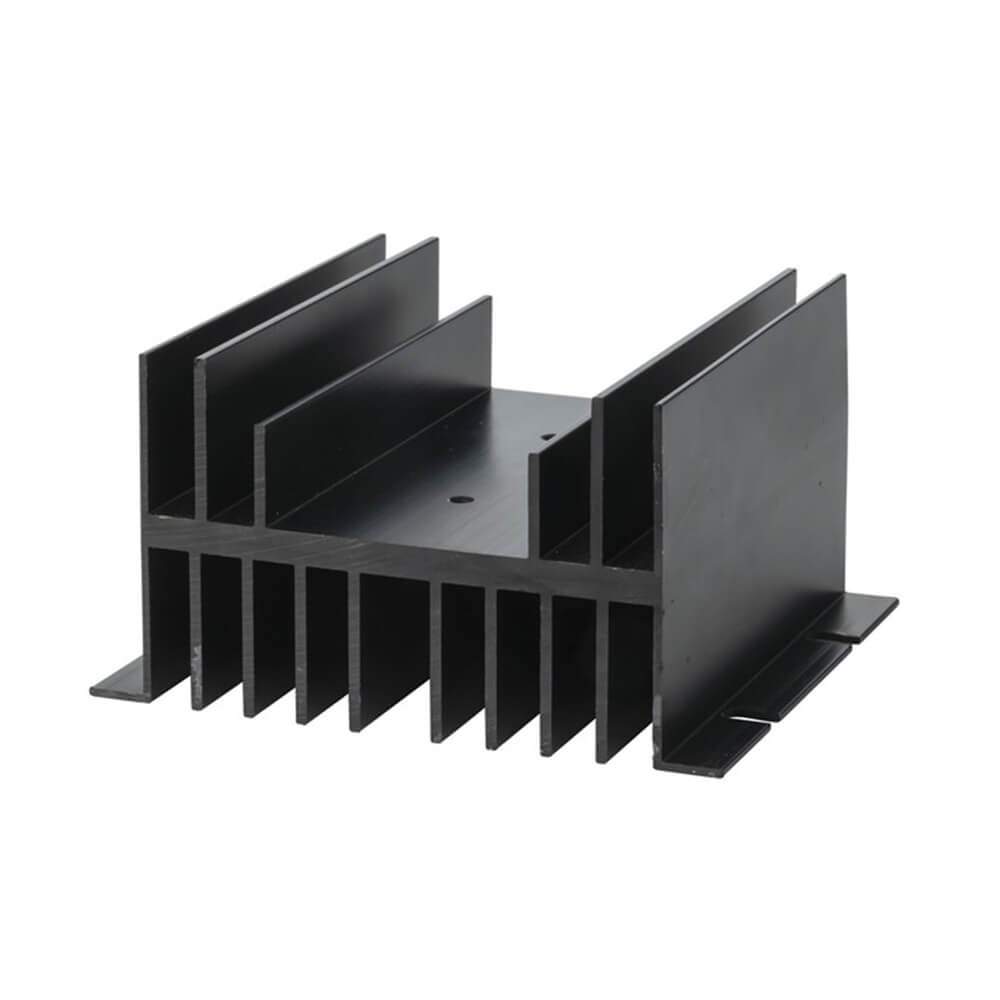

Using this heat sink with the SY-4084/SY-4086 solid state relays allows you to reach the full current capacity. Solid state relays become quite hot when used in a high current application, so suitable heat sinking is essential. Datasheet available on our website.
(Relay not included)
Product Specifications
- Length : 110mm
- Width : 118mm
- Height : 64mm
- Packaged Volume : 1.01l
- Packaged Weight : 0.32kg
- Packaged Length : 12.5cm
- Packaged Width : 11.5cm
- Packaged Height : 7cm
- Heatsink Material : Aluminimum
- Heatsink Thermal Resistance : 1.1DegC/W
- Heatsink Mounting Method : Screw Down
- Heatsink Fins : 12pc
- Length : 12.5 cm
- Width : 11.5 cm
- Height : 7 cm
