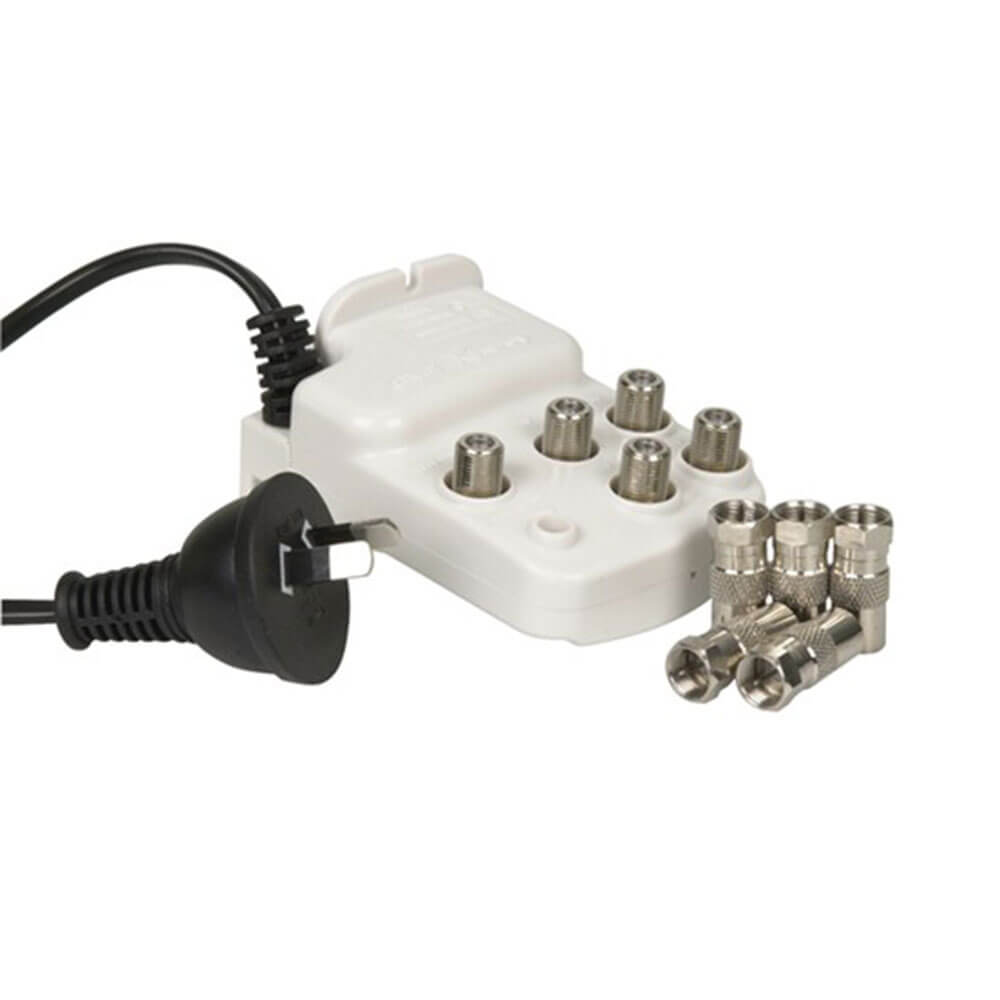

This unit is an analog and digital television splitter/amplifier for use in multiple receiver applications. The amplifier has F type input/output connectors and features variable gain on the VHF band. The unit operates from 240VAC and is mounted in a white ABS housing with integral mounting lugs. Size 60(W) x 40(H) x 85(L)mm. Adaptors are included to suit 75 ohm coax connectors.
Product Specifications
- Length : 85.0mm
- Width : 60.0mm
- Height : 40.0mm
- AC Plugpack Voltage : 240.0V
- Usage Location : Indoor
- Amplifier Type : Distribution
- Input Connection : F Type
- Output Connection : F Type
- UHF Gain : 0.0dB, 6.0dB
- UHF Frequency Range : 40.0MHz, 860.0MHz
- Length : 23 cm
- Width : 11 cm
- Height : 5 cm
