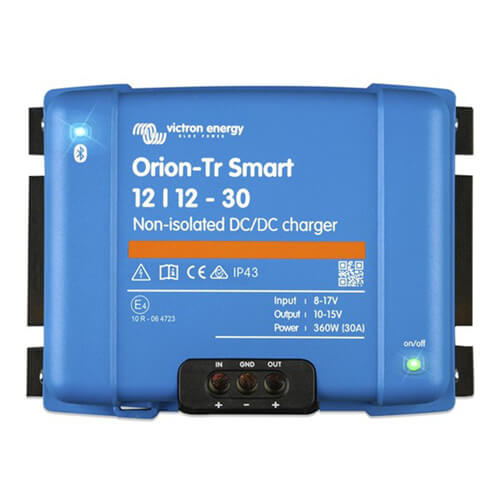

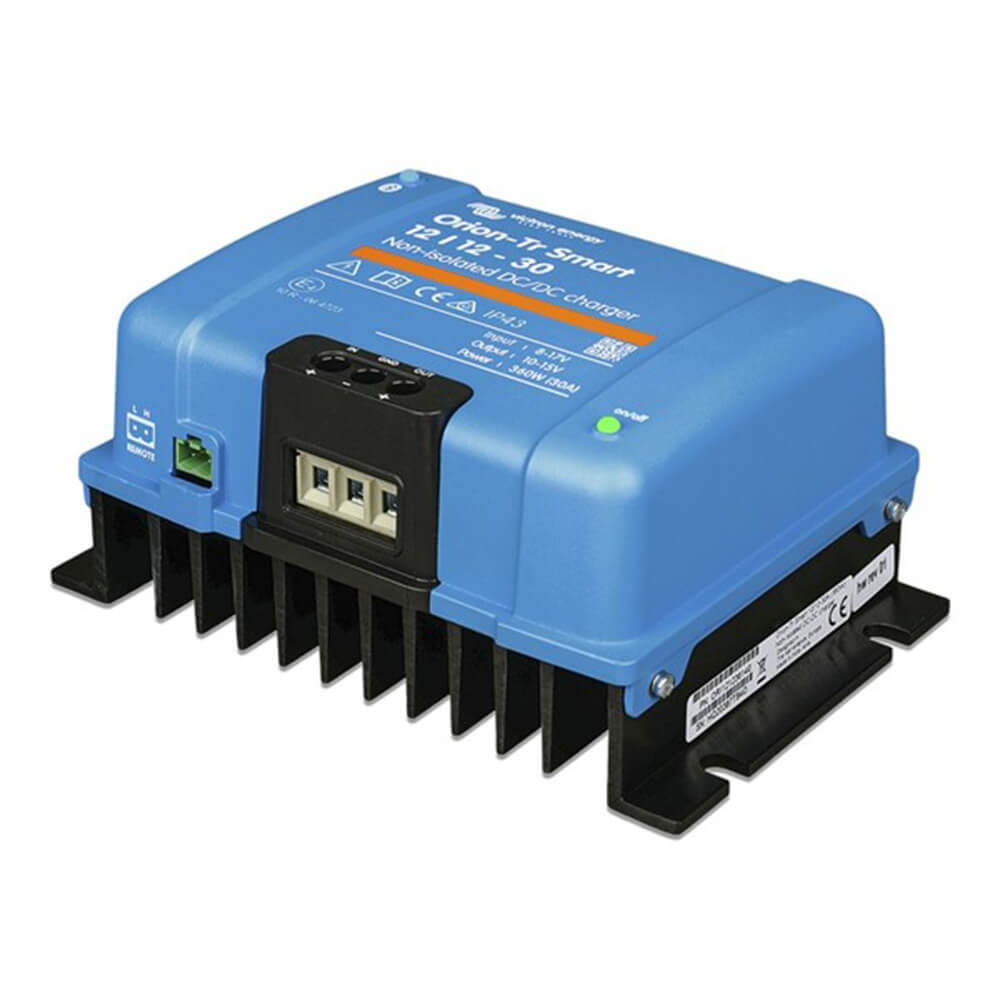

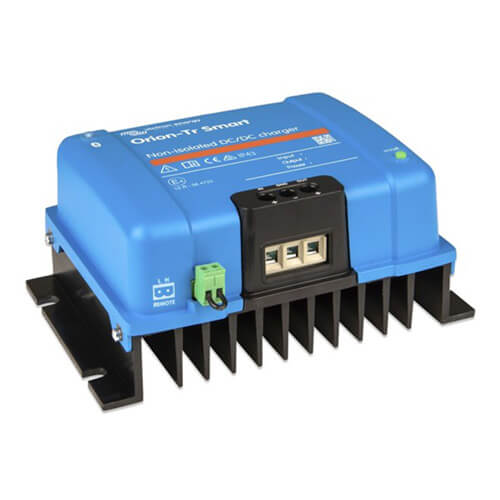

This professional DC-DC charger is designed for dual-battery systems in vehicles or boats where the alternator and the start battery are used to charge the service battery. A configurable 3-stage charge algorithm provides an adaptive bulk, absorption, or float modes to keep your 12V lead-acid or Lithium service battery in top condition. Alternatively, a fixed voltage can be chosen. Features include engine running and shutdown detection, remote on/off switch capability for manual or BMS control, and Bluetooth technology to monitor charging status in real-time, view historical data, or program via a Bluetooth enabled Smartphone, tablet or laptop. In addition, the charger can also double as a stable power supply to power 12V devices in your vehicle, such as a fridge/freezer, which can automatically disconnect power at a pre-defined voltage to avoid the service battery going flat
Product Specifications
Note: This item requires Australian Standard 230V / 50Hz mains power supply to operate. Please check your local power supply to ensure that this item will work in your country. Adapters and transformers may be required and are not included.
- IP Rating : IP65
- Dust/Particle Ingress Protection : 6 - Dust tight, no ingress of dust
- Liquid/Moisture Ingress Protection : 5 - Water jets
- Width : 205mm
- Height : 130mm
- Depth : 95mm
- Weight : 1.8kg
- Packaged Volume : 1.04l
- Packaged Weight : 0.29kg
- Packaged Length : 15.7cm
- Packaged Width : 8.8cm
- Packaged Height : 7.5cm
- Type of Batteries : Lithium Ferrous Phosphate (LiFePO4)Lead Acid
- Charger Output Voltage : 12V
- Charger Output Current : 30A
- Controller Type : Non-Isolated
- Number of Modes : 3 count
- Connection Type : Spade Terminals
- Length : 15.7 cm
- Width : 8.8 cm
- Height : 7.5 cm
